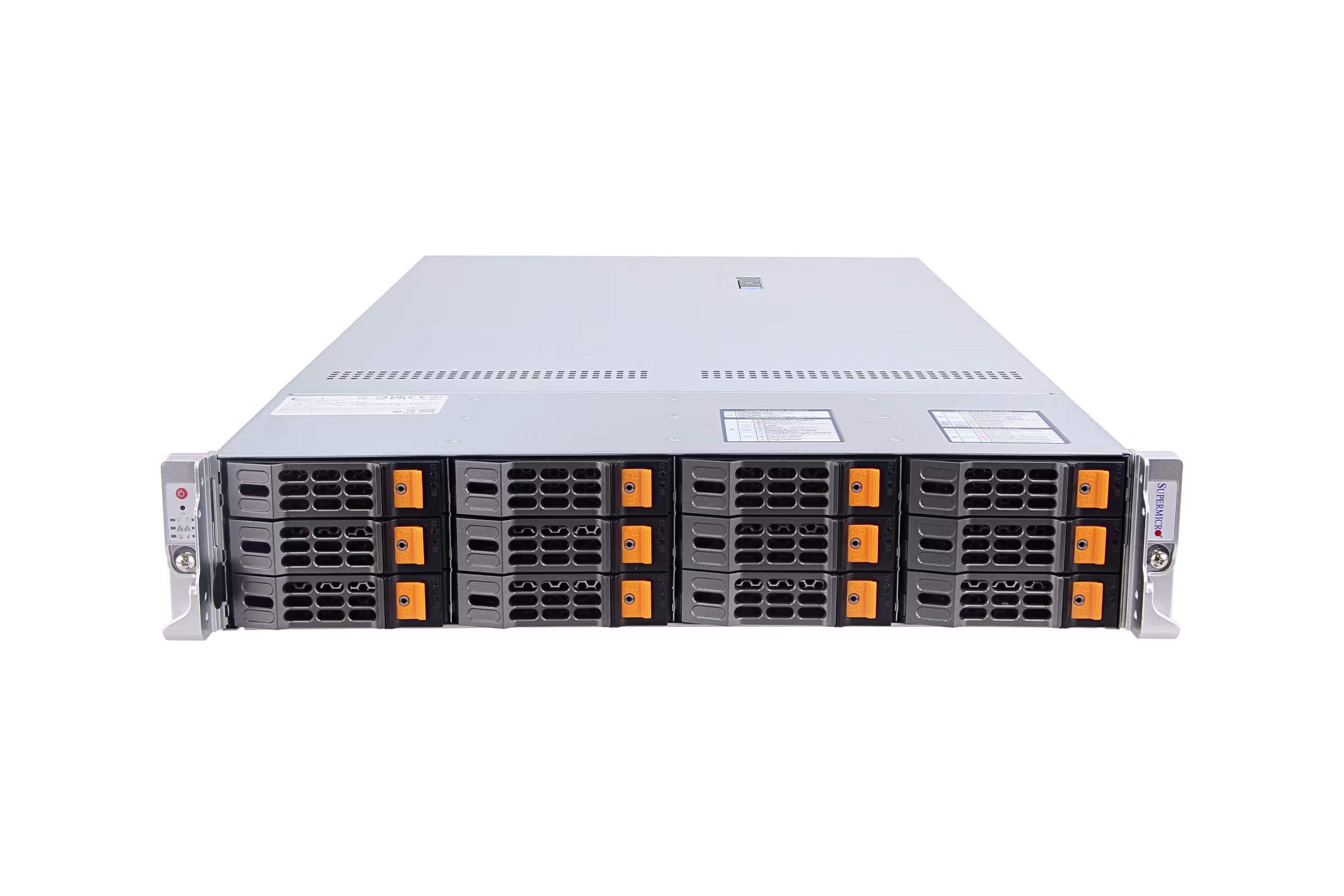

Supermicro 2U Hyper SYS-222H-TN SuperServer
Density without compromise. The Supermicro SYS-222H-TN packs dual Intel Xeon 6700/6500 processors, up to 8TB of DDR5 memory, and room for 4 double-width GPUs into a 2U chassis — NVIDIA certified and built for the most demanding virtualization and AI workloads in your data center.
Product Overview
The Supermicro SuperServer SYS-222H-TN is a high-density 2U rackmount server ideal for virtualization, software-defined storage, HPC, cloud computing, and enterprise applications. Built on the X14DBM-SP motherboard with dual Intel Xeon 6700/6500 Series P-core (up to 86C/172T) or 6700 Series E-core processors (144C/144T), it supports both air and liquid cooling. Memory capacity reaches up to 8TB across 32 DDR5 DIMM slots. Storage options include up to 24 hot-swap 2.5" NVMe/SAS/SATA bays and dual internal M.2 PCIe 5.0 NVMe slots, with optional RAID via add-on cards. Expansion provides up to 4 PCIe 5.0 x16 or 8 PCIe 5.0 x8 slots for 4 double-width/8 single-width GPUs, up to 4 CXL 2.0 devices, and 2 AIOM (OCP 3.0) networking slots. Security features TPM 2.0, cryptographically signed firmware, Secure Boot, and runtime protections.
Key Specifications
- Brand
- SuperMicro
- Condition
- New
- Category
- SuperMicro X14 Servers
- Stock
- 10 units
- Product SKUs
- SYS-222H-TN, SYS-222H-TN-01-G2 (Gold Series version with pre-configured components)
- Motherboard
- X14DBM-SP
